Exploring Gale Crater: A Peek into Mars Rover Operations
Date of Earth Planning: Monday, March 17, 2025
Last week, I had the opportunity to attend the Lunar and Planetary Science Conference held in Houston, Texas. The climate in Houston during mid-March resembles a hot summer day in Toronto, where I reside. Returning to Toronto, where the temperatures hover around the freezing mark, was a stark contrast from the warmth of Houston. However, Toronto’s chill is nothing compared to the frigid conditions at Gale Crater on Mars. During this time of year, Gale Crater experiences temperatures ranging from a bone-chilling minus 80°C to a more moderate minus 20°C. These extreme conditions significantly influence the operational decisions made regarding the Mars rover, specifically concerning power management for heating.
This morning, we received fantastic news: the Mars rover’s weekend drive was successful and included capturing mid-drive images of "Humber Park," a location mentioned in a previous blog post. Additionally, our power consumption estimates for the weekend’s plan turned out to be conservative, granting us more power than anticipated for current operations.

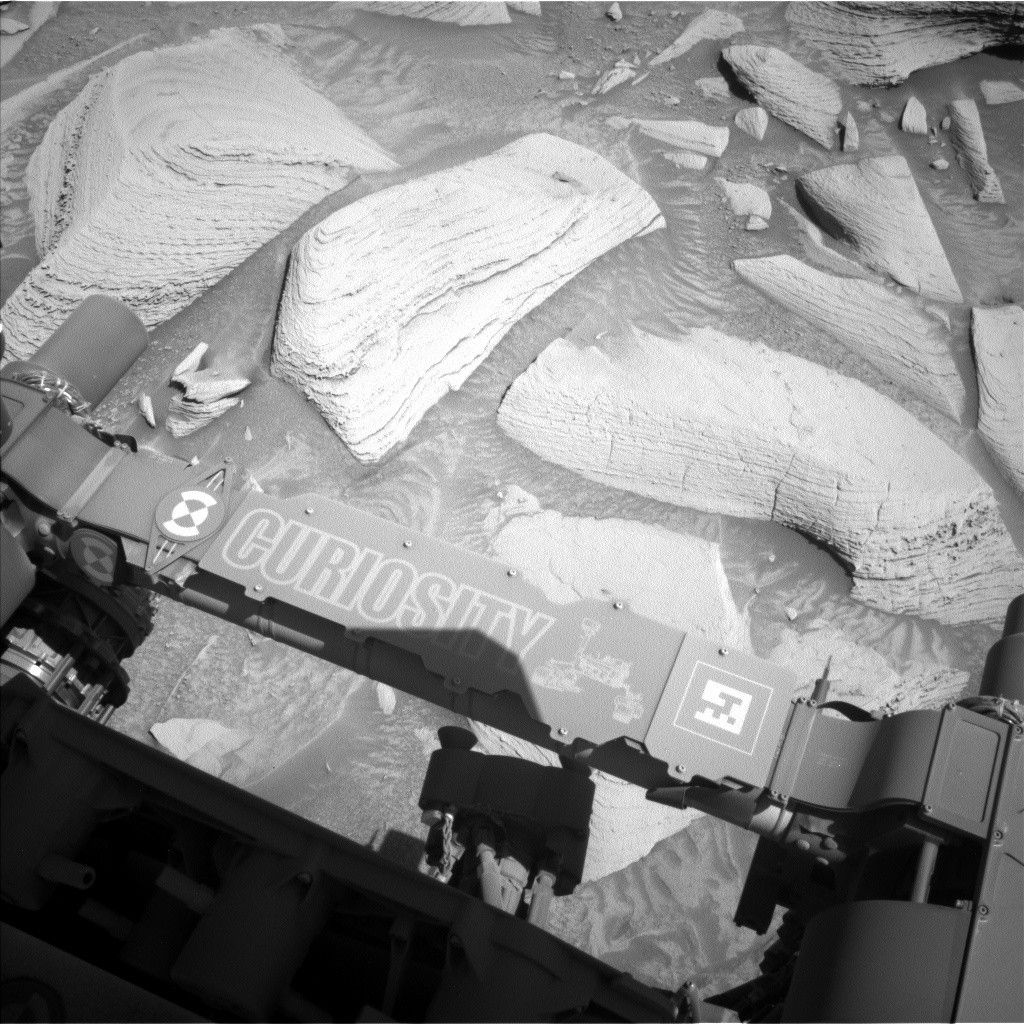

The rover’s weekend journey brought it to a spot near some fascinating rock formations showcasing excellent layering and intriguing ripples. Our team was eager to examine these features using the Mars Hand Lens Imager (MAHLI). However, the rover’s position presented a potential slip risk if its robotic arm were to be unstowed. Prioritizing the rover’s safety, we opted for a plan focused solely on remote sensing.
Both the geology and mineralogy (GEO) and environmental science (ENV) teams capitalized on the additional power available. They crafted an observation plan brimming with remote sensing activities. Since the rover will drive on the first sol (Mars day) of this two-sol schedule, all "targeted" observations—those with specific camera orientations—must occur before the drive. Consequently, the first sol is packed with Mastcam and ChemCam operations. It begins with a 14×3 Mastcam mosaic capturing the area ahead of the rover, outside its current workspace. Individual targets receive attention with Mastcam mosaics focusing on ripple and layering features at "Verdugo Peak," "Silver Moccasin Trail," and "Jones Peak." Mastcam and ChemCam collaborate on a Laser-Induced Breakdown Spectroscopy (LIBS) target, "Trancas Canyon," and some long-distance mosaics of "Gould Mesa," a feature approximately 100 meters away. Our path will take us south of this area as we move toward the intriguing "boxwork" structures.
Post-drive, the rover typically undertakes limited activities, focusing on imaging the new location to aid the next planning day. However, in this plan, the ENV team cleverly utilizes Navcam observations concurrently with the rover’s communication with Mars-orbiting spacecraft. This strategy is particularly beneficial when power is constrained. It enables additional scientific observations without extending the rover’s active time, as the rover is already awake to communicate with orbiters. Today, this approach is employed to capture extra cloud observations just before sunset, a time rarely observed. These observations include a zenith movie looking directly overhead and a "phase function sky survey," which involves a series of nine movies forming a dome around the rover to analyze the cloud ice crystals’ properties.
The second sol of the plan is more relaxed, as is typical after a drive when the rover’s exact position is unknown. Today’s activities include the usual ChemCam Autonomous Exploration for Gathering Increased Science (AEGIS) operation, followed by Navcam cloud and cloud shadow movies to assess the altitude of clouds over Gale Crater. As always, the plan includes our regular set of activities with the Rover Environmental Monitoring Station (REMS), Radiation Assessment Detector (RAD), and Dynamic Albedo of Neutrons (DAN).
Understanding the Technology Behind Mars Rover Operations
The Mars rover’s operations involve a combination of advanced technology and strategic planning. The Mastcam and ChemCam are instrumental in capturing detailed images and analyzing the Martian surface. Mastcam provides visual data through high-resolution images, while ChemCam uses a laser to study the chemical composition of rocks and soil.
The MAHLI, or Mars Hand Lens Imager, is another critical tool, providing close-up images of rocks and soil, akin to a geologist’s hand lens on Earth. However, its use is contingent on the rover’s positioning to ensure safety and prevent damage.
Remote sensing plays a pivotal role when direct contact is not feasible. It involves collecting data from a distance using various instruments, such as cameras and spectrometers, to analyze the Martian environment.
Power Management on Mars
Power management is a crucial aspect of rover operations, especially in the harsh Martian environment. The rover relies on its power source to heat vital components, ensuring they function correctly despite the extreme cold. Efficient power use allows for extended scientific operations and data collection.
The Importance of Mars Exploration
Mars exploration continues to captivate scientists and space enthusiasts alike. Each mission provides valuable insights into the planet’s geology, climate, and potential for past life. Understanding Mars’ environment aids in preparing for future human missions and enhances our knowledge of the solar system.
The collaborative efforts of GEO and ENV teams exemplify the multidisciplinary approach needed for successful space exploration. By leveraging advanced technology and strategic planning, they maximize the scientific return of each mission.
In conclusion, the Mars rover’s recent operations highlight the careful planning and innovative techniques employed to study the Red Planet. As we continue to explore Mars, the data collected will contribute to our understanding of planetary science and the broader universe. For more detailed updates on Mars exploration, you can visit NASA’s official website.
